Exponential Decay

class pumas.desirability.exponential_decay.ExponentialDecay(params: Dict[str, Any] | None = None)

compute_numeric(x: int | float) → float

Compute the exponential decay desirability for a numeric input.

Parameters:

x (Union[int, float]) – The numeric input value.

Returns:

The computed desirability value.

Return type:

float

Raises:

• InvalidParameterTypeError – If the input is not a float.

• ParameterValueNotSet – If any required parameter is not set.

compute_ufloat(x: AffineScalarFunc) → AffineScalarFunc

Compute the exponential decay desirability for an uncertain float input.

Parameters:

x (UFloat) – The uncertain float input value.

Returns:

The computed desirability value with uncertainty.

Return type:

UFloat

Raises:

• InvalidParameterTypeError – If the input is not a UFloat.

• ParameterValueNotSet – If any required parameter is not set.

name: ClassVar[str] = 'exponential_decay'

Exponential decay desirability function implementation.

Mathematical Definition:

The exponential decay function is defined as:

\[\begin{split}f(x) = \begin{cases} 1.0 & \text{if } x < 0 \\ e^{-k \cdot x} & \text{if } x \geq 0 \end{cases}\end{split}\]

With optional shift transformation:

\[f_{final}(x) = f(x) \cdot (1 - shift) + shift\]

Where:

• x is the input value.

• k is the decay rate parameter (k > 0). Higher values result in faster decay.

• shift is the vertical shift applied to the entire curve, ranging from 0 (no shift) to 1 (maximum shift).

For x < 0, the function is “rectified” or “clamped” to 1.0, meaning full desirability.

Parameters:

params (Optional[Dict[str, Any]]) – Initial parameters for the exponential decay function. Defaults to None.

k

The decay rate parameter (k > 0). Higher values result in faster decay.

Type:

float

shift

The vertical shift applied to the entire curve, ranging from 0 (no shift) to 1 (maximum shift).

Type:

float

Usage Example:

>>> from pumas.desirability import desirability_catalogue

>>> desirability_class = desirability_catalogue.get("exponential_decay")

>>> params = {'k': 1.0, 'shift': 0.0}
>>> desirability = desirability_class(params=params)
>>> print(desirability.get_parameters_values())
{'k': 1.0, 'shift': 0.0}

>>> result = desirability.compute_numeric(x=0.0)
>>> print(f"{result:.2f}")
1.00

>>> result = desirability.compute_numeric(x=1.0)
>>> print(f"{result:.2f}")
0.37

>>> result = desirability(x=-1.0)  # Clamped to 1.0
>>> print(f"{result:.2f}")
1.00

>>> from uncertainties import ufloat
>>> result = desirability.compute_ufloat(x=ufloat(1.0, 0.1))
>>> print(result)
0.37+/-0.04

class pumas.desirability.exponential_decay.exponential_decay(x: float | ~uncertainties.core.AffineScalarFunc, k: float, shift: float = 0.0, math_module: ~types.ModuleType = <module 'math' from '/home/docs/.asdf/installs/python/3.12.10/lib/python3.12/lib-dynload/math.cpython-312-x86_64-linux-gnu.so'>)

Exponential decay function: exp(-k*x) for x >= 0, clamped to 1.0 for x < 0.

Parameters:

• x (Union[float, UFloat]) – The input value.

• k (float) – The decay rate parameter.

• shift (float, optional) – The vertical shift. Defaults to 0.0.

• math_module (ModuleType, optional) – The math module to use. It uses math for numerical computations and umath for uncertain computations. Defaults to math.

Returns:

The result of the exponential decay function.

Return type:

Union[float, UFloat]

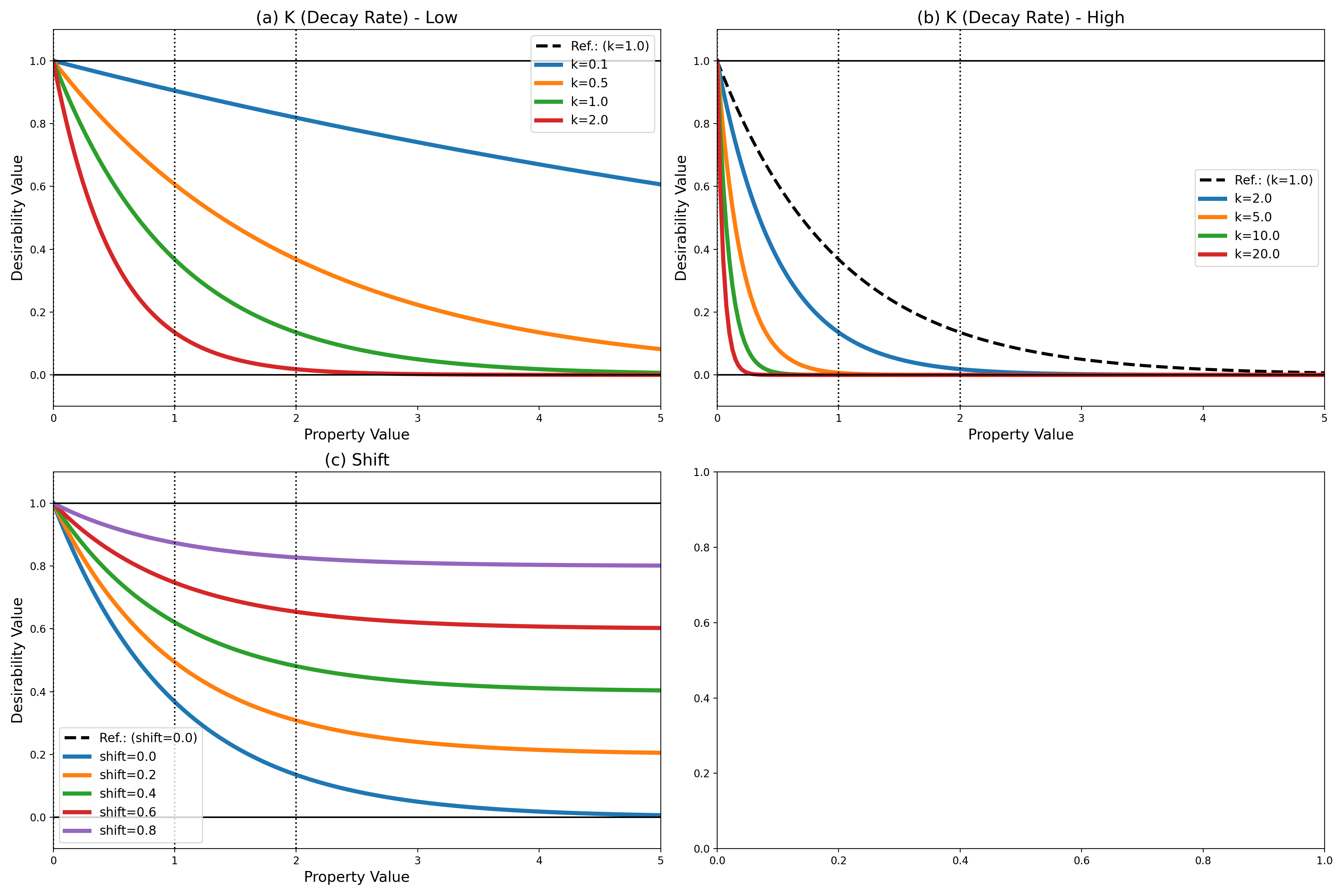

Parameter Analysis

(Source code, png, hires.png, pdf)
